Hydraulic Equipments Manufacturer : Unique Engineering

ISO Certified

red


Hydraulic Cylinders

  • Adjustable Stroke Cylinder

  • Custom Built Cylinders

  • Pneumatic Cylinders

  • Spares of Cylinder

Range

Bore

Up to 300 mm

Rod

Up to 150 mm

Stroke

Up to 3000 mm

Pressure

Up to 160,250,400 bar

Construction Features

  • Hydraulic Cylinders Suitable for heavy Duty Applications upto 160 Kg/ Cm2

  • Available Bore Size - 40, 50, 63, 80, 90, 100, 125, 140, 160, 180, 200, 220, 240 and 260mm.

  • Welded Construction Hydraulic Cylinders for rigidity

  • Surface finish of Micro Honed Tubes - up to 0.4 Ra or Better

  • Piston Rods-Ground, hard chrome Plated and re-grounded to finish better then 0.1 Ra for longer Seal Life.

  • Finaly adjustable cushioning with locking arrangement.

  • Provision of Bleed Screw at both ends of Hydraulic Cylinders.

  • Option of minimum two rod sizez for each bore.



Our Other Products

Hydraulic Power Pack
Hydraulic Power Pack

Wheel Alignment Jack
Wheel Alignment Jack

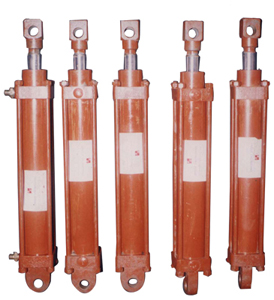

Hydraulic Cylinders Range

Adjustable Stroke cylinder

Special purpose adjustable stroke cylinder with 30 to 35% adjustable in stroke with cushioning is our speciality. These type Hydraulic Cylinders find their application inplastic injetion moulding machines, where molded goods are picked up by robots. This helps in excat position of moulds with respect to robot pick up device to ensure trouble free functioning of system as well as reducing the cycle time by adjustment of travel.

Custom Built Cylinders

Most of our production capacity is utilised in custom built, which are designed and manufactured to suit special requirement of clients to meet different system parameters.



Wide Range of Hydraulic Cylinder


Hydraulic Cylinders 01 Hydraulic Cylinders 02 Hydraulic Cylinders 03
Hydraulic Cylinders 04 Hydraulic Cylinders 09 Hydraulic Cylinders 06
Hydraulic Cylinders 07 Hydraulic Cylinders 08 Hydraulic Cylinders 10

Design Features of our Hydraulic Cylinders

  • Piston Rods of EN-19 Material.

  • Rod Bearing Extra Long Cartridge Houses wiper seal and non-metalic high abrasion resistant wear bands.

  • Rod Seals of high abrasion resistant and durable PTFE compound.

  • Piston Seals of High abrasion resistant and durable PTFE compound

  • Piston Bearing non-metalic high abration resistant wear bands.

  • Double Lip wiper of nitrile rubber to prevant entry of foreign particles into the cylinder.

  • PTFE available in 60% bronze filed material or in carbon filled material.

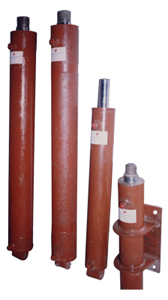

Hydraulic Cylinders

Hydraulic Cylinder

Contact For Any type of Hydraulic Cylinders

Hydraulic Cylinder Manufacturer in Ahmedabad, Gujarat India - Unique Engineers
